Game Boy Light Refurbishment

May 13, 2026

The Game Boy Light has always been a chase device of mine and many others. Its production was limited to only Japan and was within months of the release of the Game Boy Color. It features a cool electroluminescent screen and sold in lower quantities due to its limited domestic market sale and competition against the release of the GBC.

I was able to get three of these junk units and thankfully they all turned on and ran fine. There was some mild battery terminal corrosion that could be easily repaired with replacing with new terminals and opening them all up, the motherboards were more or less pristine. For the two units without screen issues they would do with a simple clean up and possible re-shell. Their contrast wheels had poor fidelity and either needed cleaning or replacing.

For the one with a burnt out screen, my options were to either try to refurbish with an as close to OEM stock screen to retain the original electroluminescent backlit screen or to do a full on upgrade to an IPS screen such as a Q5 IPS screen (same as those used in GBPs).

Compared to finding similar to OEM screen, it is almost easier to go all out an get a Q5 IPS screen to replace these burnt out screens and use a built in screen color filter to mimic to electroluminescent teal/blue backlighting or to use another add-on Backlight Display Mod such as one from Handheld Legend.

The reason for the difficulty in replacing these GBL screens is that in reading guides and forum threads, time after time, people will bring up the difficulty in how to use the appropriate polarizing filter. You may come across posts that refer to sourcing the film from Taiwan, or finding a specialist in Brazil that cuts these for the GBP and the WonderSwan, or a broken AliExpress link to a filter that apparently worked for them. There’s also YouTube videos that show the painful process. He literally says, “this is gonna suck, I hope I didn’t ruin this,” a sentiment that I can relate to so many times in modding. He is successful at the end of the video, but I’m not this guy, and I’m not that good.

So of course, I didn’t hold my breath and I did order a Q5. But somehow right after that, I magically, in the rabbit holes of the internet, I did find someone that was selling a perfectly repaired GBL screen with replaced cable and polarizing film.

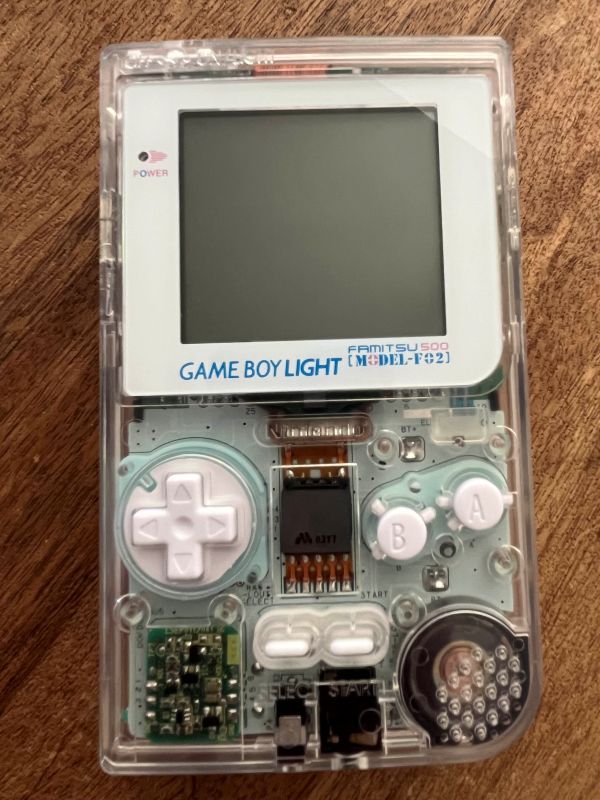

I began opening up the GBLs and wanted to create two replica Famitsu 500 Model F-02 units. One with the original electroluminescent screen with minimal refurbishment and another with modern upgrades—Laminated Q5, new speaker, capacitors, LED/resistor. Things were going great with the modern one until I put it together and put too much pressure onto one of the top screw posts and cracked the screen as the screw likely disrupted the lamination. The modern replica is just a display piece for now. But at least I have a refreshed original electroluminescent GBP screen. Something that a 12 year-old me would have loved playing Pokemon Blue on in dim lighting or at night in my bedroom with the lights off so my mom couldn’t tell I was playing games.

…I guess this is still an ongoing project!
